Harmony Heights: A Comprehensive BIM Experience Project

Introduction:

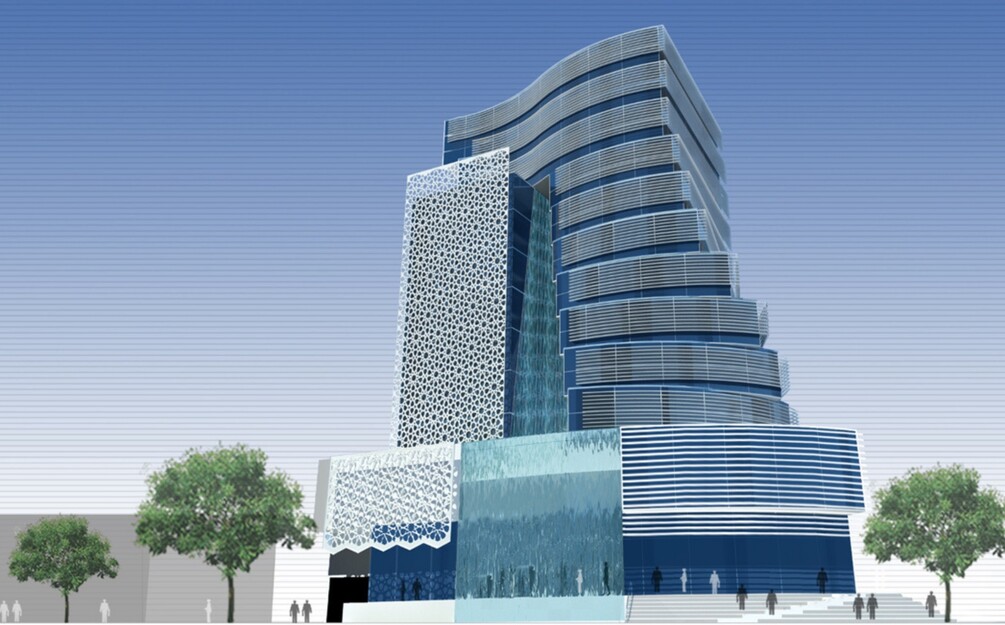

Welcome to Harmony Heights, a dynamic venture set on a 2028-square-meter plot. This expansive complex spans 24,000 square meters, including 4,000 square meters of commercial space, a 2,000-square-meter reception hall, and accommodation units in the form of an Apartment Hotel, covering an extensive 12,000 square meters. The project, designed with a focus on commercial appeal, emphasizes symbolic and index volumetric design principles beyond the fundamental tenets of volumetric plastic design.

Architectural Discipline:

In the architectural discipline, precision reigns supreme as elements are meticulously modeled at LOD 300. The project showcases 4D simulation, facade modeling, quantification, clash detection, and an immersive experience through VR & AR integration. The outcome is a comprehensive Phase 2 Album.

Structural Discipline:

Moving into the structural discipline, the project attains a high level of detail with modeling at LOD 350. The journey includes 4D simulation, quantification, clash detection, VR & AR integration, and the development of a Phase 2 Album.

Mechanical Discipline:

Within the mechanical discipline, meticulous modeling of pipes, ducts, and ventilation channels takes place at LOD 300. The project features 4D simulation, quantification, clash detection, VR & AR integration, and the creation of a Phase 2 Album.

Challenges:

The Harmony Heights project presents distinctive challenges, including:

- Number of hard (interdisciplinary) clashes: 85 collisions

- Most common location of clashes: Ducts & Ventilation Channels Mechanical (19 collisions)

- Non-compliance with spatial standards in mechanical or plumbing drawings.

- Non-alignment of structural slabs with architectural grid limits.

Revit Version:

This project is compatible with Revit version 2021 and above. It stands as one of the most robust projects in our portfolio, reflecting our prowess as a BIM manager. We present this complete BIM file to you, offering an invaluable resource to learn and apply its families and elements to your own projects.

Final Thoughts:

Harmony Heights is not just a project; it's a testament to precision, innovation, and BIM excellence. As you delve into this robust BIM file, gain valuable insights into interdisciplinary clashes and the intricate modeling of a real project. Let this project be a source of inspiration as you harness its families and elements for your unique ventures.
